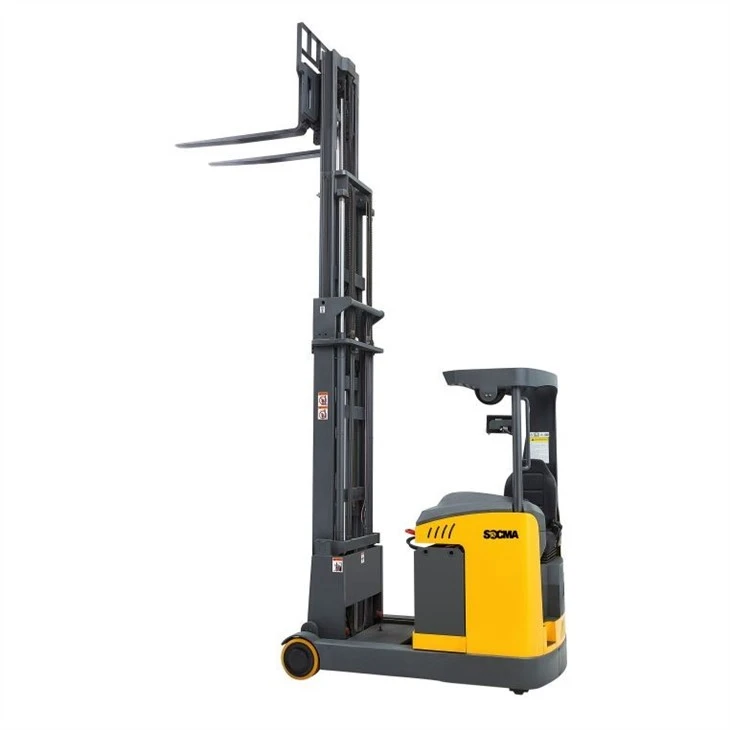

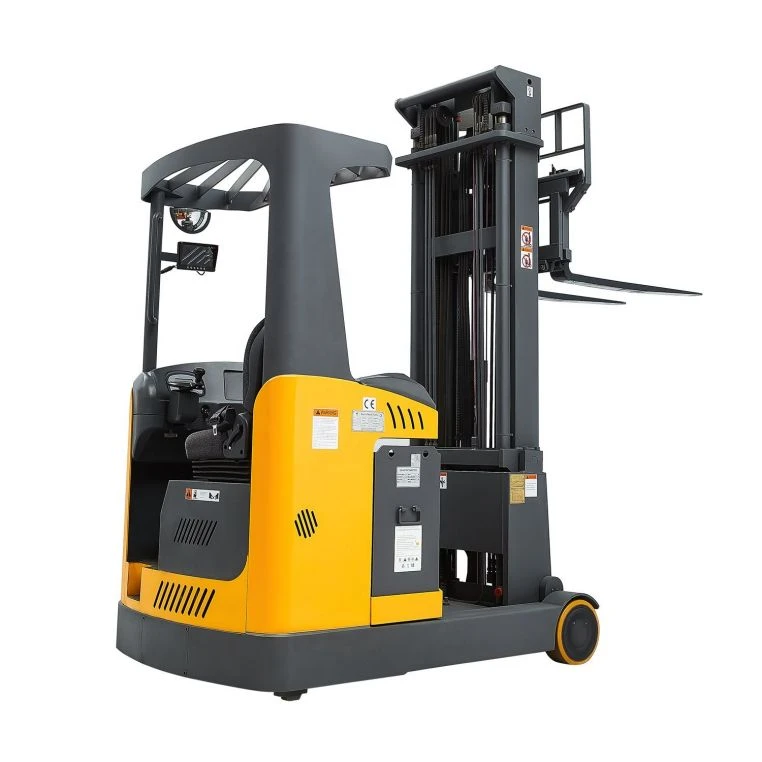

Ombor uchun CQD20 elektr palatali yuk mashinasi
sig'im / nominal yuk 2000KGsMaks. ko'tarish balandligi: 3000/5000/6200/7400 mmBurilish radiusi: 1820 mmSayohat tezligi, yuklangan/yuksiz: 8/8,3 km/soat
So'rov yuborish
Mahsulotni tanishtirish
| Model | Birlik | CQD20 | |||
| Imkoniyat/nominal yuk | Kg | 2000 | 2000 | 2000 | 2000 |
| Maks. ko'tarish balandligi | mm | 3000 | 5000 | 6200 | 7400 |
| Yuklash markazi masofasi | mm | 600 | 600 | 600 | 600 |
| Haydash g'ildiragi | mm | 406×152 | 406×152 | 406×152 | 406×152 |
| Vilkalar g'ildiragi | mm | 340×104 | 340×104 | 340×104 | 340×104 |
| G'ildiraklar, orqadagi raqam (x=haydovchi g'ildiraklar) | 1×/2 | 1×/2 | 1×/2 | 1×/2 | |
| Mast/vilkalar vagonining oldinga/orqaga egilishi | Grad | 2, 2 (mast) | 2, 2 (mast) | 2, 2 (mast) | 2, 2 (mast) |
| Balandligi, ustun tushirilgan | mm | 2086 | 2240 | 2740 | 3190 |
| Bepul lift | mm | ~ | 1700 | 2100 | 2500 |
| Balandligi, ustuni kengaytirilgan | mm | 3800 | 5800 | 7000 | 8200 |
| Yuqori qo'riqchi balandligi (kabina) | mm | 2200 | 2200 | 2200 | 2200 |
| O'rindiq balandligi/stend balandligi | mm | 1068 | 1068 | 1068 | 1068 |
| Krura balandligi | mm | 270 | 270 | 270 | 270 |
| Umumiy uzunlik | mm | 2440 | 2440 | 2440 | 2440 |
| Uzunlik (to'siq vilkalar) | mm | 1950 | 1950 | 1950 | 1950 |
| Umumiy kenglik | mm | 1260 | 1260 | 1260 | 1260 |
| Vilkalar o'lchamlari | mm | 40/120/1070 | 40/120/1070 | 40/120/1070 | 40/120/1070 |
| Masofaga erishish | mm | 600 | 600 | 600 | 600 |
| Paletlar uchun yo'lak kengligi 1000x1200 kesishgan | mm | 2920 | 2920 | 2920 | 2920 |
| 800x1200 uzunlikdagi palletlar uchun yo'lak kengligi | mm | 2980 | 2980 | 2980 | 2980 |
| Burilish radiusi | mm | 1820 | 1820 | 1820 | 1820 |
| Sayohat tezligi, yuklangan/yuksiz | Km/soat | 8/8.3 | 8/8.3 | 8/8.3 | 8/8.3 |
| Yuk ko'tarish tezligi, yuklangan/yuksiz | m/s | 0.24/0.3 | 0.24/0.3 | 0.24/0.3 | 0.24/0.3 |
| Tezlikni pasaytirish, yuklangan/yuksiz | m/s | 0.45/0.36 | 0.45/0.36 | 0.45/0.36 | 0.45/0.36 |
| Batareya kuchlanishi, normal quvvati K5 | V/Ah | 48/500 | 48/500 | 48/500 | 48/500 |
| Batareya og'irligi | Kg | 860 | 860 | 860 | 860 |
| Batareya o'lchamlari L / W / H | mm | 1220×344×727 | 1220×344×727 | 1220×344×727 | 1220×344×727 |
| Xizmat og'irligi | Kg | 3300 | 3700 | 3800 | 3900 |
