Ko'tarish balandligi 15 m bo'lgan 4 t televidenie
Nominal yuk: 4000KG
To'rt bosqichli ishlaydigan qo'l
Cummins dizel dvigateli
Gidrostatik uzatish
15 m ko'tarish balandligi

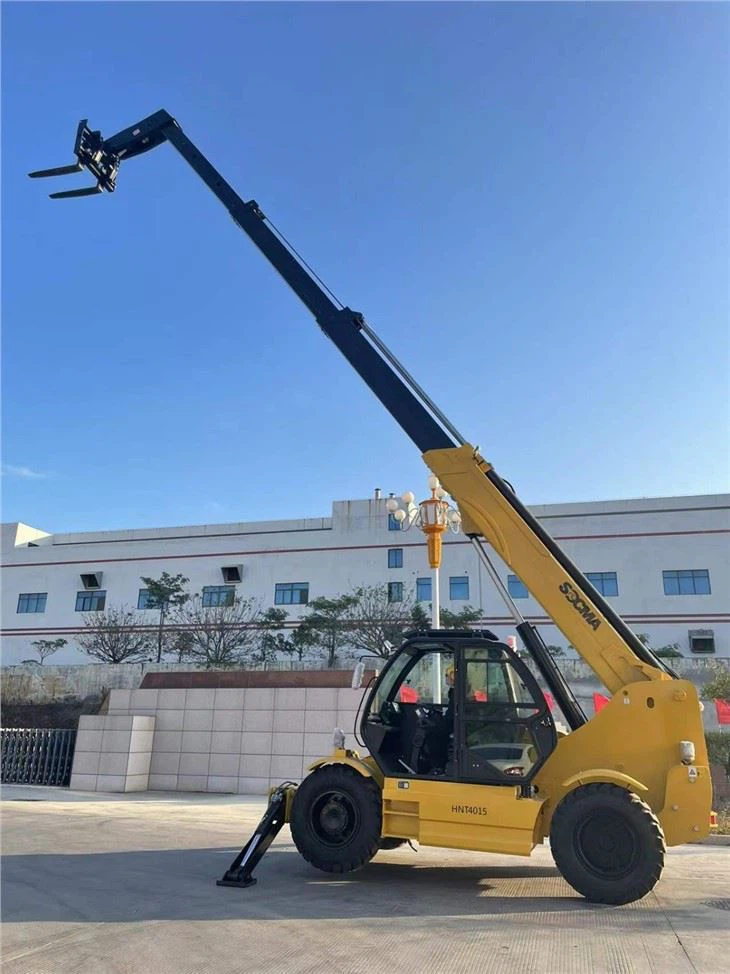

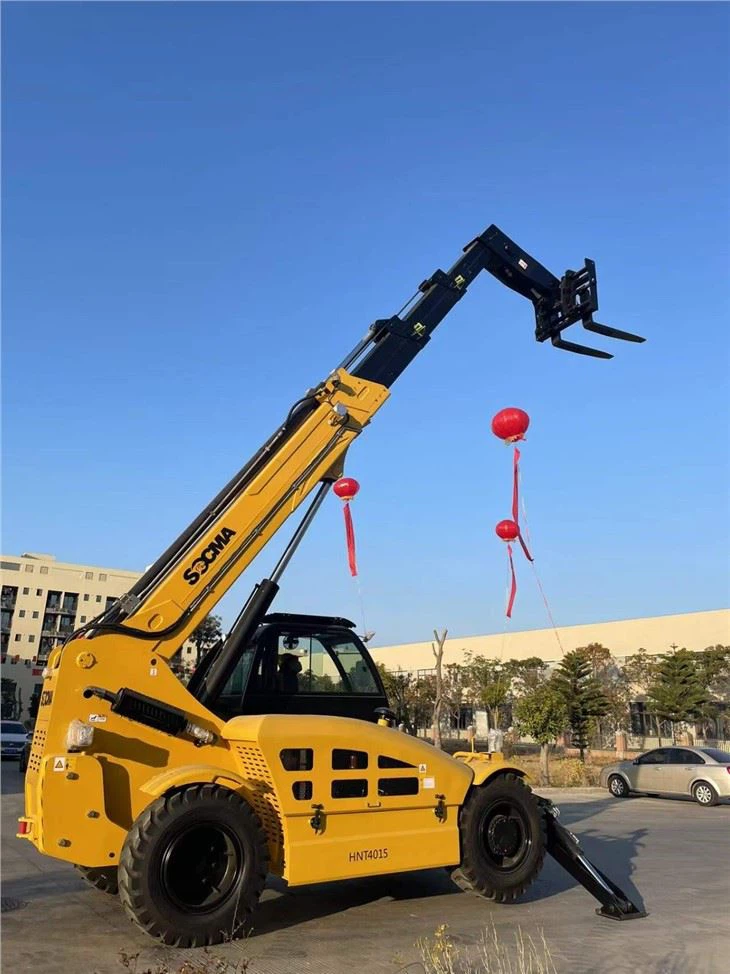

SOCMA 4t 15m teleskopning ko'rinishi
HNT4015 4t 15m telehandlerning asosiy texnik xususiyatlari
Element | Birlik | Tolerantlik | HNT4015-2 |
Nominal yuk ko'tarish qobiliyati | kg | - | 4000 |
Yuklash markazi | mm | - | 600 |
Rated load at Max.Horizontal reach | kg | - | 800 |
Maks. to'liq kirishning ish balandligi | m | ±1.5 percent | 15 (uzatilgan ustun bilan) 14.85 (cho'zilgan ustunsiz) |
Max.reach (without forks) | m | ±1.5 percent | 10.5 |
Erni tozalash | mm | ±1.5 percent | 400 |
Burilish radiusi (tashqi) | mm | 105 foizdan kam yoki unga teng | 5500 |
Bom romining yuqoriga qaragan burchagi | daraja | ±1.0 | 70 |
Bom ramkasi pastga qaragan burchak | daraja | ±1.0 | -2 |
Operatsion og'irligi | kg | ±5 percent | 14000 |
Umumiy uzunlik (vilkalarsiz) | mm | ±2 percent | 6298 |
Kengligi | mm | ±2 percent | 2440 |
Balandligi | mm | ±2 percent | 2790 |
G'ildirak protektori (old / orqa) | mm | ±2 percent | 2010/2010 |
G'ildirak bazasi | mm | ±2 percent | 3070 |
Vilkalar hajmi (LWT) | mm | - | 122015060 |
Nominal quvvat/nominal burilish tezligi | kVt/min | - | QSB4.5-C160-30 119/2200 |
Transmissiya turi | - | Gidravlik statik uzatish | |
Maksimal sayohat tezligi (yuksiz) | km/soat | ±10 percent | 25 |
Baholash qobiliyati | foiz | - | 20 foiz |
Old shinalar (2) | - | - | 16/70-24-24PR |
Orqa shinalar(2) | - | - | 16/70-24-24PR |
Ochilish o'lchami | mm | 10 foiz | 3790 |
SOCMA teleskopik forkliftning xavfsiz ishlashi:
a. It is dangerous if the telehandler is operated wrongly.The operator should develop a habit of safe operation and a sense of dangerous situations.
b. Operator barcha boshqaruv qurilmalari va ularning ishlashi va funktsiyalari bilan tanish bo'lishi kerak.
c. O'rindiqda o'tirmaguningizcha, telefonni yoqmang yoki ishlatmang.
e. Foydalanish chegarasi va holatini biling, teletranslyatorni nazorat ostida saqlang. Qurilmani ishlatishda juda tez harakat qilmang.
f. Avvalo piyodalar xavfsizligi. Maqsadli yuk yaqinida va haydash marshrutida piyodalar bor-yo'qligiga e'tibor bering.
g. Hech kimning teleskopik bum ostida (yuklangan va tushirilgan) va haydash yo'lida turishiga yo'l qo'ymang.
h. Ruxsatsiz hech bir tana telehandlerga chiqa olmaydi.
i. Operator o'rindiqni tark etishdan oldin:
1)Stop the telehandler
2)Put the joystick in neutral
3)Close the brake
4)Lower the telescopic boom totally
5)Shut down the engine and all control device when the operator leaves
6)If the telehandler is on a ramp,use a wheel wedge.
7)Check the headroom before driving through the wire and bridge,in and out of building.
8) The roof guard is for falling object protection,while it can not defense all.So be careful whenever handling goods.
9)Do not change or add anything on the telehandler
